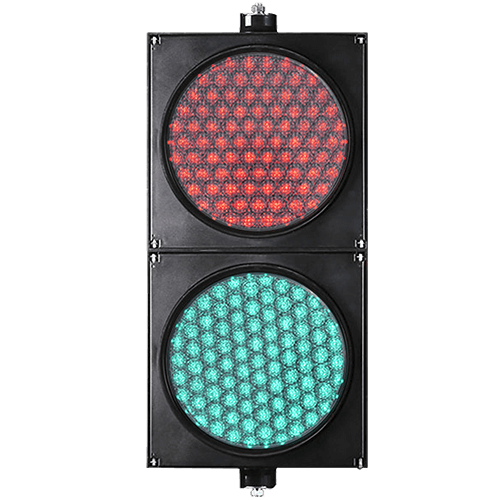

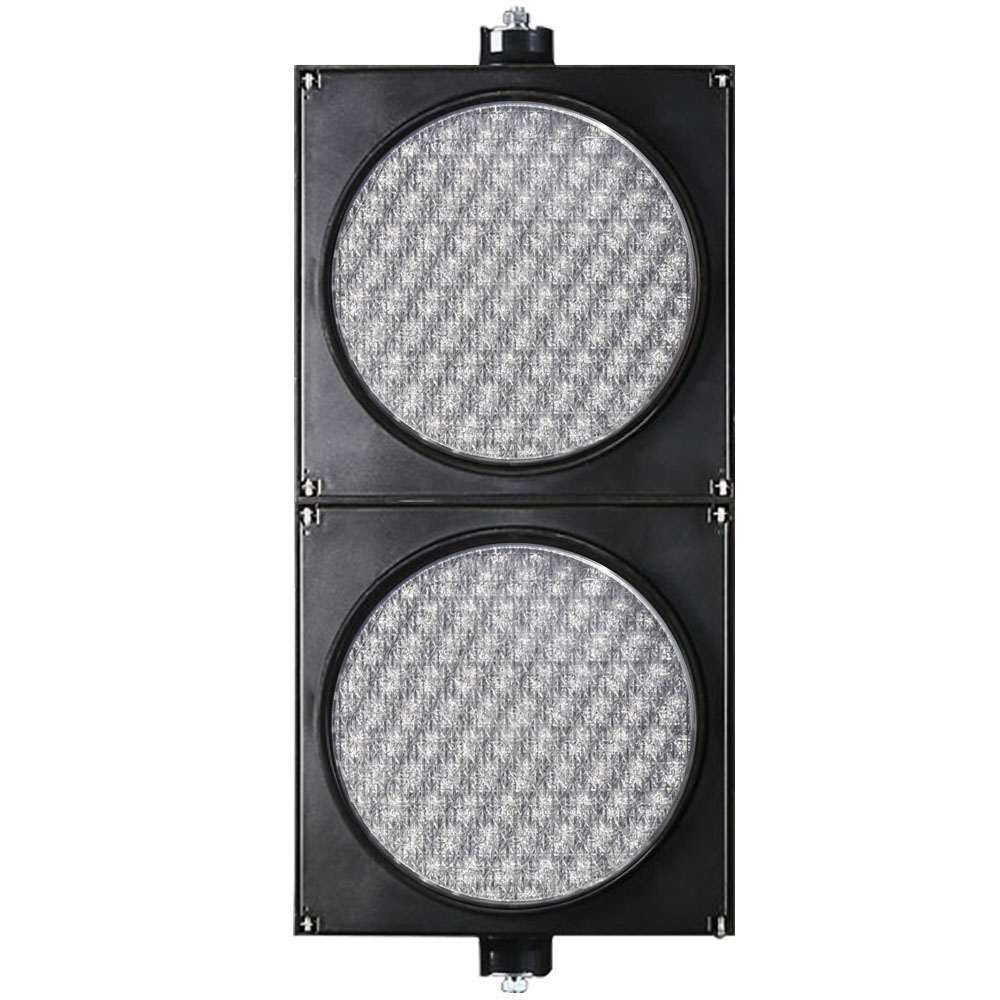

300mm Cobweb Lens Red Green LED Traffic Lanterns
Model: JD300-3-FM21(TYPE15)
Housing Material: GE UV resistance PC or Die-casting Aluminium
Working Voltage: DC12/24V; AC85-265V 50HZ/60HZ
Temperature: -40℃~+80℃
LED QTY: 91(pcs)
Certifications: CE(LVD, EMC) , EN12368, ISO9001, ISO14001, IP55
Product Features
Novel design with beautiful appearance
Low power consumption
High efficiency and brightness
Large viewing angle
Long lifespan-more than 80,000 hou
Special Features
Multi-layer sealed and waterproof
Exclusive optical lensing and good color uniformity
Long viewing distance
Keep up with CE, GB14887-2007, ITE EN12368 and relevant international standards
Technical Parameter
Specification
| 300mm |
Luminous |
Assemblage Parts |
Color |
LED Quantity |
Wavelength(nm) |
Visual Angle |
Power Consumption |
| ≥400 |
Red Full Ball |
Red |
91pcs |
625±5 |
30 |
≤9W |
| ≥600 |
Green Full Ball |
Green |
91pcs |
505±5 |
Packing Info
| 300mm Cobweb Lens Red Green LED Traffic Lanterns |
|
| Packing Size |
Quantity |
Net Weight |
Gross Weight |
Wrapper |
Volume(m³) |
|
| 88*42*22 cm |
1 pcs /carton box |
7.3kg |
9kg |
K=K carton |
0.081 |
|
