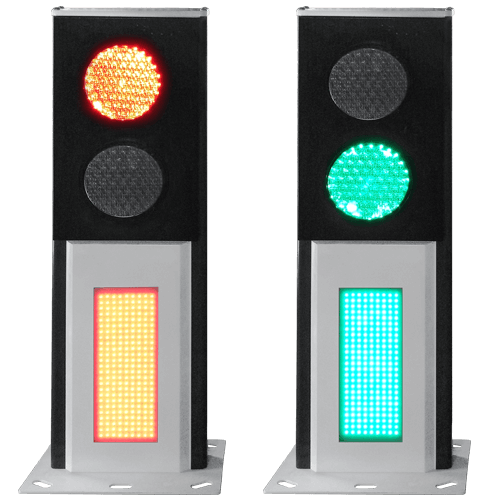

1.25m all-in-one traffic light
Model: YTJD200-3-FM2P1201
Housing Material: Aluminum
Working Voltage: 85-265VAC 50HZ/60HZ
Temperature: -40℃~+80℃
Certifications: CE(LVD, EMC) , EN12368, ISO9001, ISO14001, IP55
Product Features
Integrated cabinet, with simple and generous appearance, strong three-dimensional effect, high mechanical strength; good rust resistance and long life.
Low power consumption, using high-brightness LED long visual distance: ≥300m,long LED life:≥100000 hours
Special Features
With PFC (PFC>0.9) corrected isolated switching power supply, surge protection voltage ≥4000V, and CE certification
The front light bar is switched synchronously with the signal light
Waterproof, protection grade: IP53
The control circuit obtained the national invention patent
Technical Parameter
Specification
| Technical Parameters |
Product's electrical parameters |
| Red LED |
Brightness of each LED：4000~6000mcd, wavelengthλd：625±5nm, Viewing angle: 50° |
| Green LED |
Brightness of each LED：3200~5500mcd, wavelengthλd：505±5nm, Viewing angle: 50° |
| Red full ball |
61pcs LEDs，intensity：＞230cd，power consumption：≤5W |
| Red full ball |
61pcs LEDs，intensity：＞230cd，power consumption：≤5W |
| Green full ball |
61pcs LEDs, intensity:＞160cd，power consumption:≤4W |
| Red LED panel |
225pcs LEDs, intensity:＞480cd，power consumption:≤13W |
| Green LED panel |
225pcs LEDs, intensity:＞720cd，power consumption:≤11W |
| Pole Height |
1250mm |
| Input |
DC11V-30V |
| Temperature |
-40℃~+80℃ |
| Wave Length |
Red (625±5nm), Green(505±5nm) |
| IP degree |
85-265V AC,12V/24V DC |
| IP grade |
IP53 |
